Single HP13.37 Booster set, Hydro Pneumatic sets - HP CMH13.37 - For domestic and industrial applications 3.5bar pressuer

USES

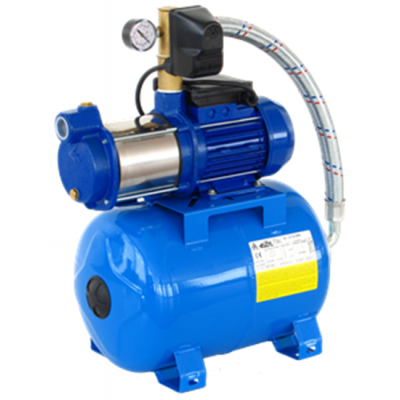

Hydro Pneumatic sets HP CMH
Suitable for Domestic and industrial applications up to 3.5 bar

The HP CMH Range of pumps consists of:
1 Horizontal tank 24L;
1 Switch;
1 Flexible tube;
1 Manometer;
1 5-way connector;
Electric Cable;
1 Cannon M.F. 1".

CONSTRUCTION

Pump body and pusher in cast iron;
Exterior shell in stainless steel (AISI304);
Impeller in stainless steel (AISI 304);
Shaft in stainless steel (AISI 416);
Diffusor in noryl with fibre-glass.

MOTOR

• Externally ventilated;
• Mechanical seal (aluminium axide-carbon-graphite);
• Mechanical seal (SIC/SIC DIN24960) on request;
• Protection IP44;
• Class F insulation.
• Tension standard.

OBSERVATIONS

• Max. temperature of water: 35ºC;
• Max. starts/hour: 30.
