Single HP15.60 Booster set, Hydro Pneumatic sets - HP CMH15.60 - For domestic and industrial applications 5bar pressure

USES

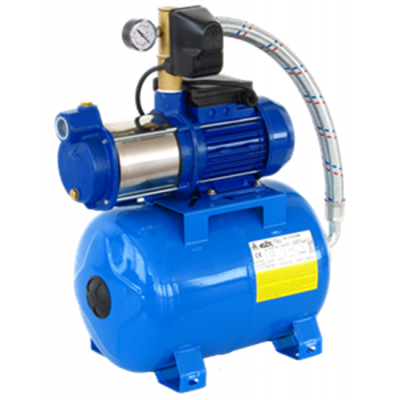

Hydro Pneumatic sets HP CMH
Suitable for Domestic and industrial applications up to 5 bar

The HP CMH Range of pumps consists of:
1 Horizontal tank 24L;
1 Switch;
1 Flexible tube;
1 Manometer;
1 5-way connector;
Electric Cable;
1 Cannon M.F. 1".

CONSTRUCTION

Pump body and pusher in cast iron;
Exterior shell in stainless steel (AISI304);
Impeller in stainless steel (AISI 304);
Shaft in stainless steel (AISI 416);
Diffusor in noryl with fiber-glass.

MOTOR

• Externally ventilated;
• Mechanical seal (aluminium axide-carbon-graphite);
• Mechanical seal (SIC/SIC DIN24960) on request;
• Protection IP44;
• Class F insulation.
• Tension standard.

OBSERVATIONS

• Max. temperature of water: 35ºC;
• Max. starts/hour: 30.
