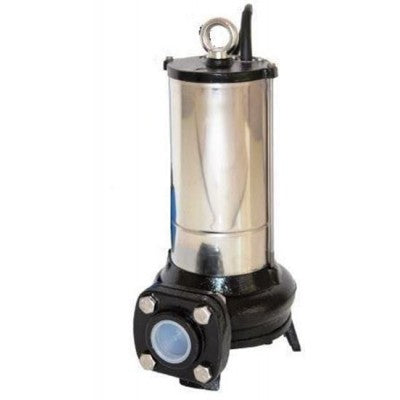

GR35.120.1A Manual Macerator pump 1" 1/14 discharge

Submersible electric Grinder pumps suitable for water loaded with solids or fibres. All waste water from homes, including toilets. Front outlet ideal for installations with a guide rail. Immersion Depth of 10M.



USES

The electric pumps "Grinder GR" are designed for waste water loaded with suspended matter ,
of sewage with grinder impeller suitable for guide rail installation.

The range " Grinder GR " is divided into:
GR35 Discharge: 1 1/4 " Max Capacity: 240 l/m Max head 20m

CONSTRUCTION

Pump casing in cast Iron;
Tungsten cutting mechanism ;
Shaft in stainless steel (AISI 416);
Pump body in stainless steel

MOTOR

• Externally cooled by the pumped liquid;
• Isolated electrical motor in oil bath;
• Mechanical seal (SIC/SIC DIN24960);
• Power cord with 10m or other length on request;
• Tension standard;
• Class F insulation.

OBSERVATIONS

• Max. temperature of water: 35ºC;
• Max. diameter of the bodies in suspension: 5mm;
• Max. depth of immersion 10m
