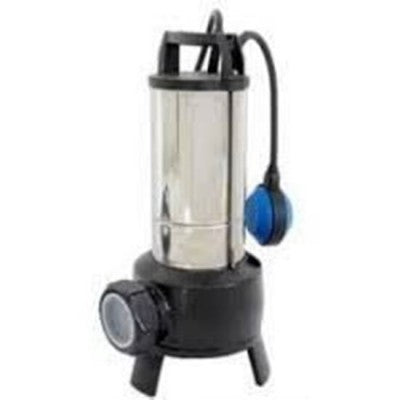

Vortex F 50.75 1A Automatic 2" Submersible Sewage Pump with 50mm solids handling

USES

The electric pumps "Vortex F" are designed for waste water loaded with suspended matter ,
of surface water and sewage with guide rail installation.

F50.75 Discharge: 2" Max Capacity: 450 l/m Max head: 12m Solids: 50mm

CONSTRUCTION

Pump casing in cast Iron;
Impeller in cast iron ;
Shaft in stainless steel (AISI 416);
Pump body in stainless steel

MOTOR

• Externally cooled by the pumped liquid;
• Isolated electrical motor in oil bath;
• Mechanical seal carbon ceramic;
• Mechanical seal (SIC/SIC DIN24960) on request;
• Power cord with 10m or other length on request;
• Tension standard;
• Class F insulation.

OBSERVATIONS

• Max. temperature of water: 35ºC;
• Max. diameter of the bodies in suspension: 5mm;
• Max. depth of immersion 10m
