• 14,000 Litres Commercial Pump Station, Ideally sized for multiple dwellings for up to 93 people or commercial properties 280 people

14,000 Litres Commercial Pump Station, Ideally sized for multiple dwellings for up to 93 people or commercial properties 280 people

  • £9,619.20 incl VAT


Available Options


14,000 Litres Commercial Pump Station, Ideally sized for multiple dwellings for up to 93 people or commercial properties 280 people

"Need Advice? Call Us: 01335 345135

(Free Delivery)

DPSCOM14ms 14,000 Litre Package pumping station. Ideally sized for multiple dwellings for up to 93 people or commercial properties 280 people. Dual 10m head pumps. All our pump stations are manufactured to the highest British Standards relevant to our industry such as BS EN 12050-1:2001 Wastewater lifting plants for buildings and sites, BS EN 12056-4:2000 Gravity drainage systems inside buildings and BS EN 752-6:1998 Drain and sewer systems outside buildings.

All our package units are delivered pre-built for quick and easy installation. The standard pumping station consists of 80mm solids handling heavy duty Vortex SF80 (10m lift) submersible sewage pump, Or alternatively our heavy SGR50 macerator pumps

Flow Rates SF80 – 16l/s (requires 90mm pump main or bigger )

SGR50 – 6.5l/s (requires 63mm pump main or bigger )

• Either 230v or 415v available

Included within your Sewage Pumping Station Package

  • 2 x SF80 80mm solids sewage pump or Heavy duty SGR50 macerator pumps
  • 1 x 3303A dual alternating control, with thermal overloads and high level alarm
  • 4 x Heavy duty self-weighted float switches

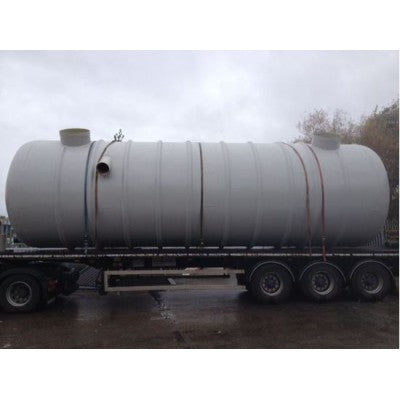

  • 1 x 1850m x 5600mm long heavy duty GRP chamber with re-enforced ribs and 10 year warranty
  • 1 x Pedestrian rated 600mm x 750mm galvanised lockable manhole cover
  • 2 x Pump Pedestal and Guide rail kit
  • 2 x Non return valve
  • 2 x Lifting chain and D-link
  • 1 x Internal PVC discharge pipe work kit
  • 1 x Float Bracket
  • 1 x 110mm Seal for incoming Pipe
  • 1 x 63 or 90 m MDPE adaptor for outgoing pipework ( dependant or vortex or macerator pumps )
  • 1 x 1st years free maintenance visit.
  • 1 x 24 months warranty
